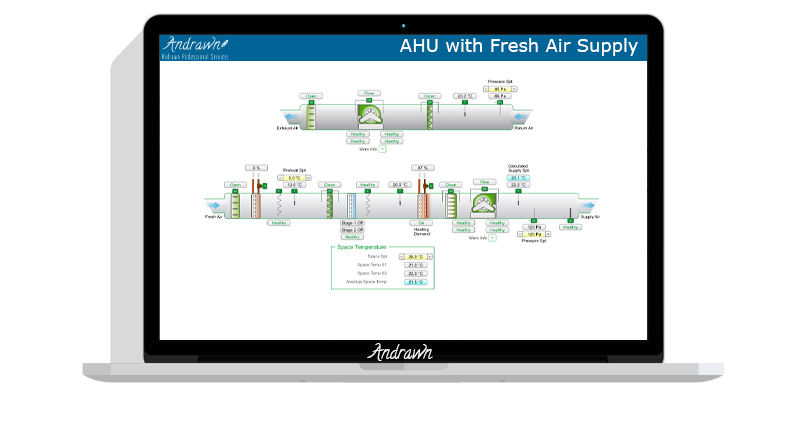

AHU with Fresh Air Supply

  • No re-circulation
  • No Extract
  • Frost protection.
  • Humidity Control
  • Full control from a single graphic
  • Links to Des-Ops, Panel Drawings
  • Other

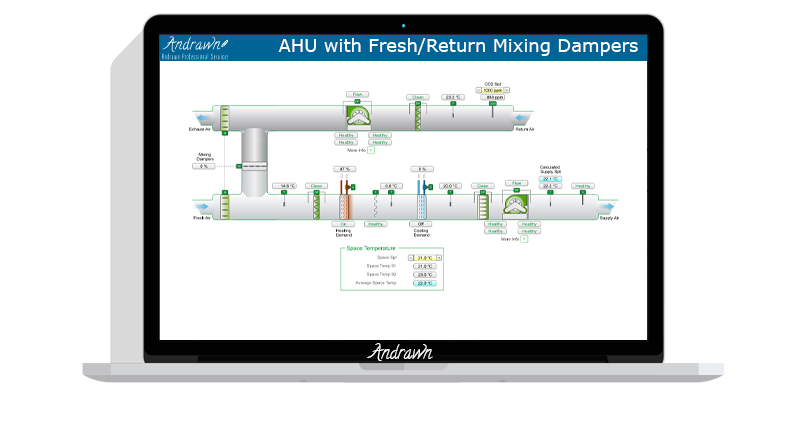

AHU with Return/Fresh Air Mixing Dampers

  • Used where space is a premium.
  • Fresh Air/Return are Mixed to reduce demand.
  • WCan be used to control CO2 Levels.
  • Does not offer any separation of air streams.

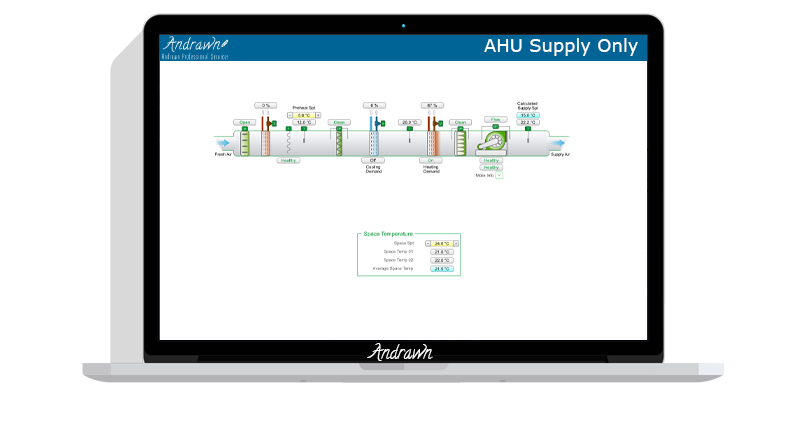

Supply Air Only

  • No extract from served area(s)

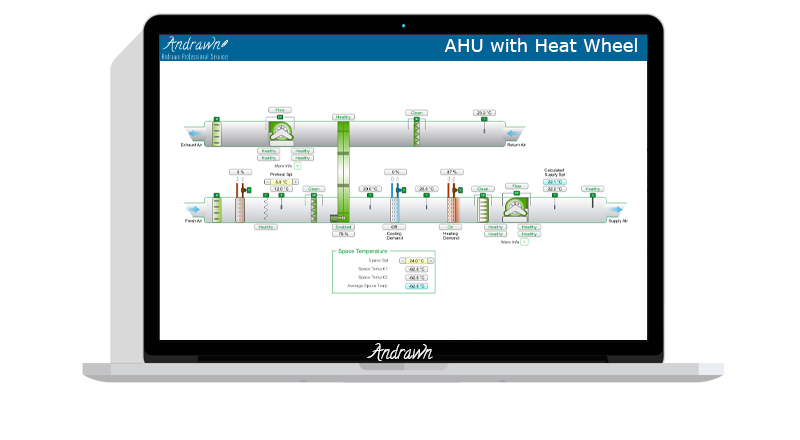

AHU with Heat/Thermal Wheel

  • Used where space is a premium.
  • Unwanted heat is absorbed from the return air.
  • Wheel rotate and transfers into supply air.
  • Cannot offer 100% separation of air streams.

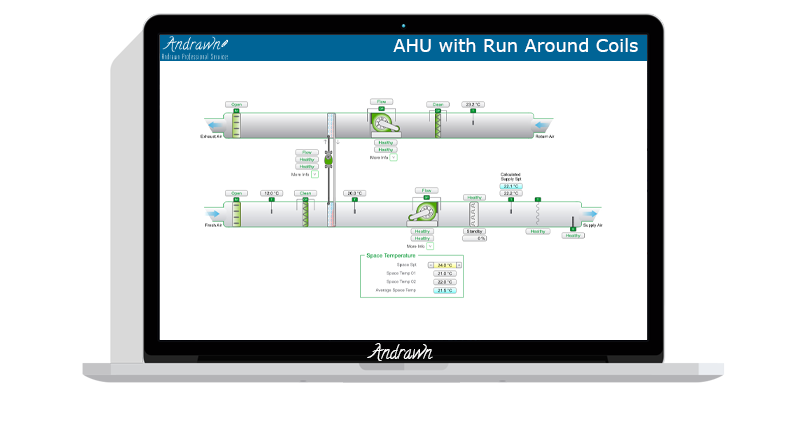

AHU with Run Around Coils

  • Uses waste heat in the return air.
  • Saves demand on heating plant.
  • Used when supply/extract duct are separate areas.
  • Pump used to transfer heat via enclosed water loop

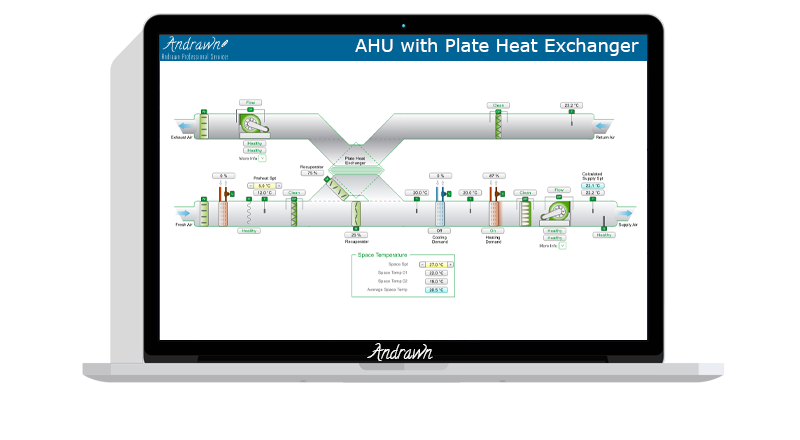

AHU with Plate Heat Exchanger

  • Uses waste heat in the return air.
  • Saves demand on heating plant.
  • Air permanently separated.
  • No pollution from extract air.

AHU Graphics

AHU Systems. Dual/Single Fan

LTHW Graphics

LTHW Systems

DHWS Graphics

DHWS Systems.

Pumpset Graphics

2 / 3 / 4 Pump Systems

Plate Heat Exchangers

Plate Heat Exchangers. Integrated High Limit Stats.

MCWS Tank Graphics

MCWS Tank Systems. Single, Double, Twin.
