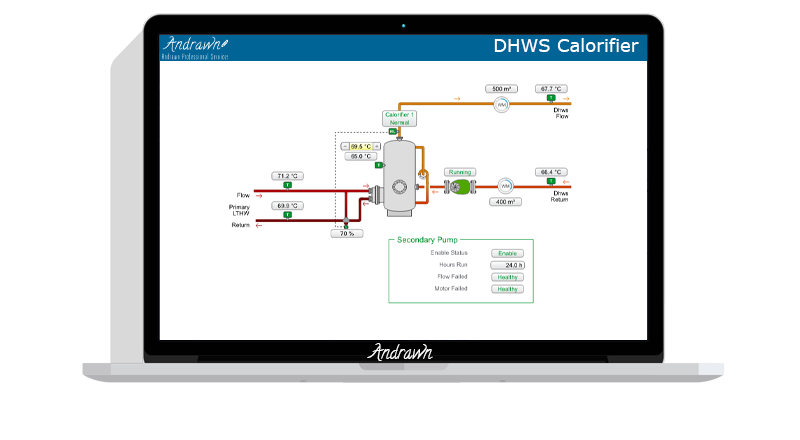

Single Calorifier

  • Single Unit
  • Return Pump
  • High Limit Protected
  • Legionella Protection (via pump)
  • No Redundancy

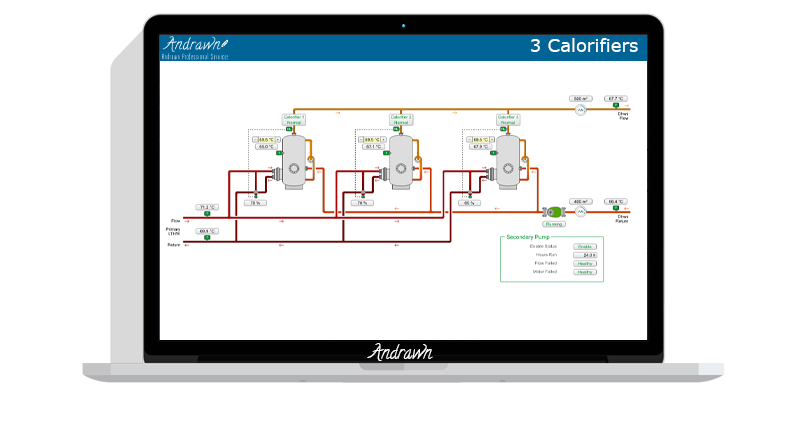

Triple Calorifier System

  • Three Units
  • Return Pump
  • High Limit Protected
  • Legionella Protection (via pump)
  • Redundancy

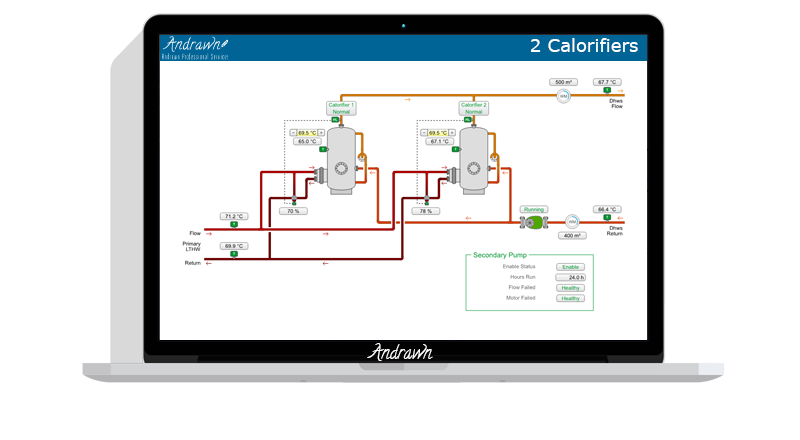

Dual Calorifier

  • Two Separate Units
  • Return Pump
  • High Limit Protected
  • Legionella Protection (via pump)
  • Redundancy

AHU Graphics

AHU Systems. Dual/Single Fan

LTHW Graphics

LTHW Systems

DHWS Graphics

DHWS Systems.

Pumpset Graphics

2 / 3 / 4 Pump Systems

Plate Heat Exchangers

Plate Heat Exchangers. Integrated High Limit Stats.

MCWS Tank Graphics

MCWS Tank Systems. Single, Double, Twin.
